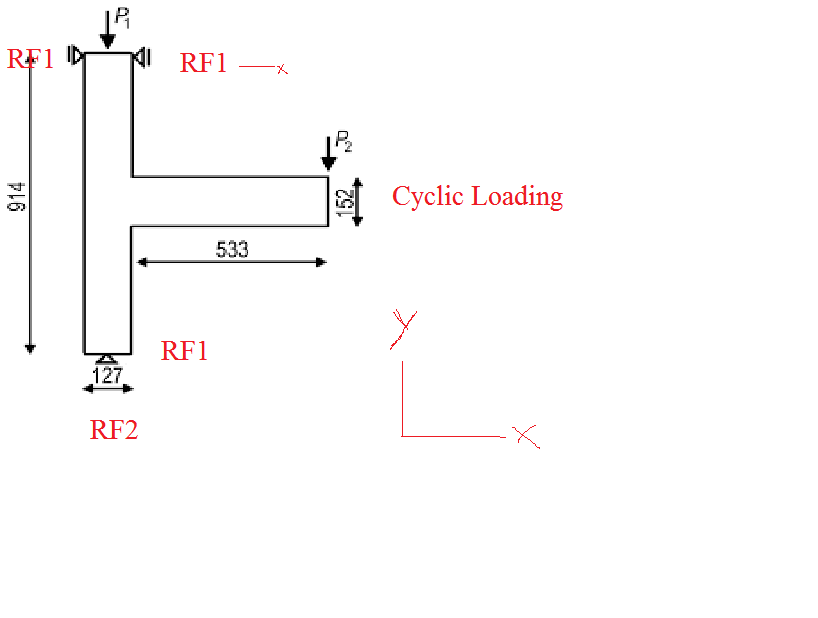

Hello all, i want to draw the hysterises curve for the given model in ABAQUS. I have simulated the model but i am confused in post processing. Please Answer my question; Is it okay to find the net reaction force from the given Summation of All RF1 component given in the figure for the cyclic loading on cantilever end? How to find the net Reaction force for the given model as forces are involved, RF1 and RF2?
-
Aoa, Can any one help me in Numerical analyses of Beam Column joint in ABAQUS/CAE? I am working on Beam column joint using ABAQUS but as a beginner i am not able to extract the data from the model. All the drawings are available. All i have to do is to numerically analyses the joints.
-

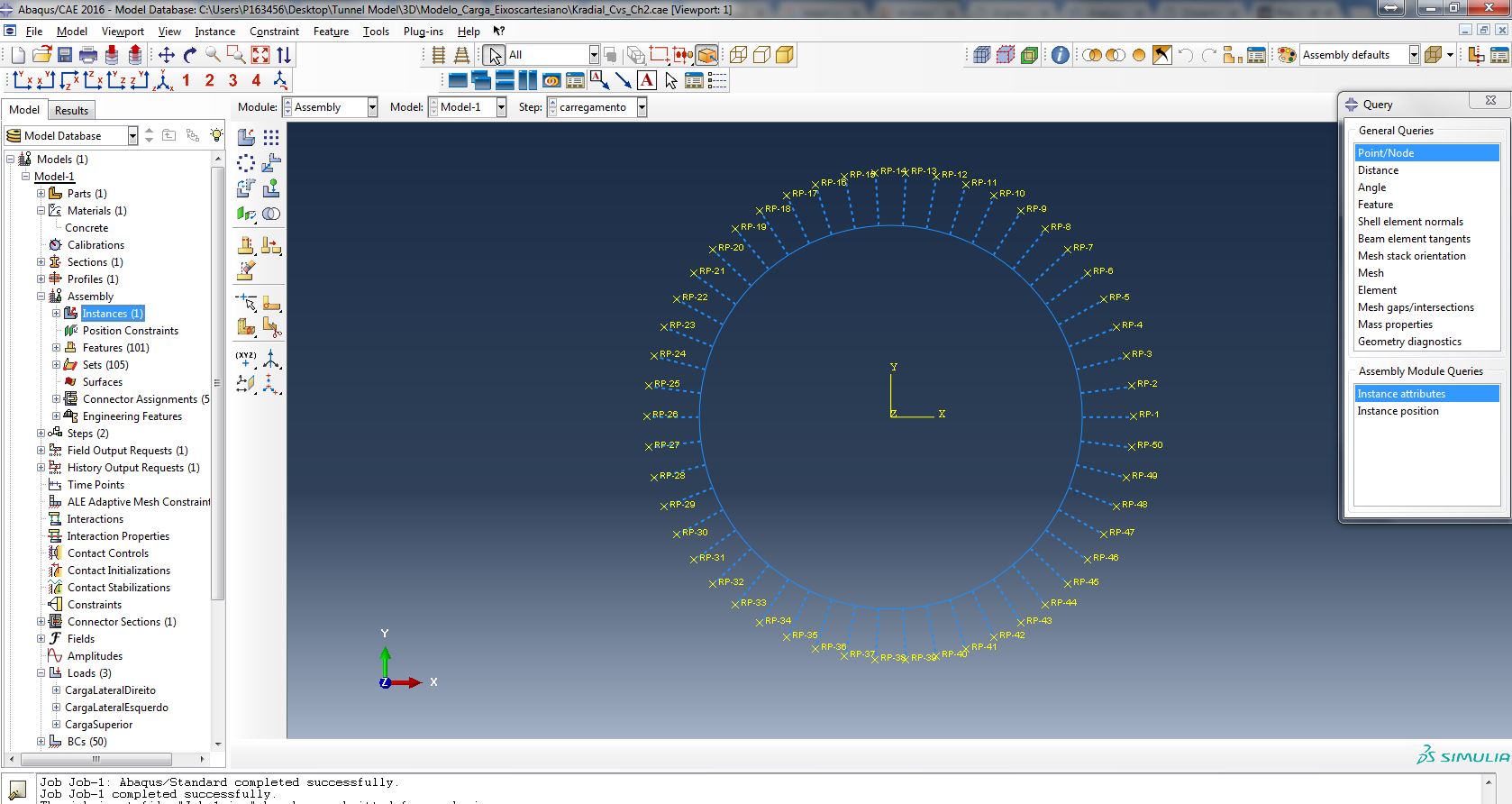

Good Night, My name is ingrid and I am trying modelling one ring of linning tunnel in Abaqus, the last mont I tried in sap2000 but i could not hav good answer., for this reason i am doing my model in Abaqus with only springs radials (in the moment). Anyone could help me? About how input the loads, Is better radial or vertical and horizontal. Thanks you. Regards, Ingrid
-
Good Night, My name is ingrid and I am trying modelling one ring of linning tunnel in Abaqus, the last mont I tried in sap2000 but i could not hav good answer., for this reason i am doing my model in Abaqus with only springs radials (in the moment). Anyone could help me? About how input the loads, Is better radial or vertical and horizontal. Thanks you. Regards, Ingrid
